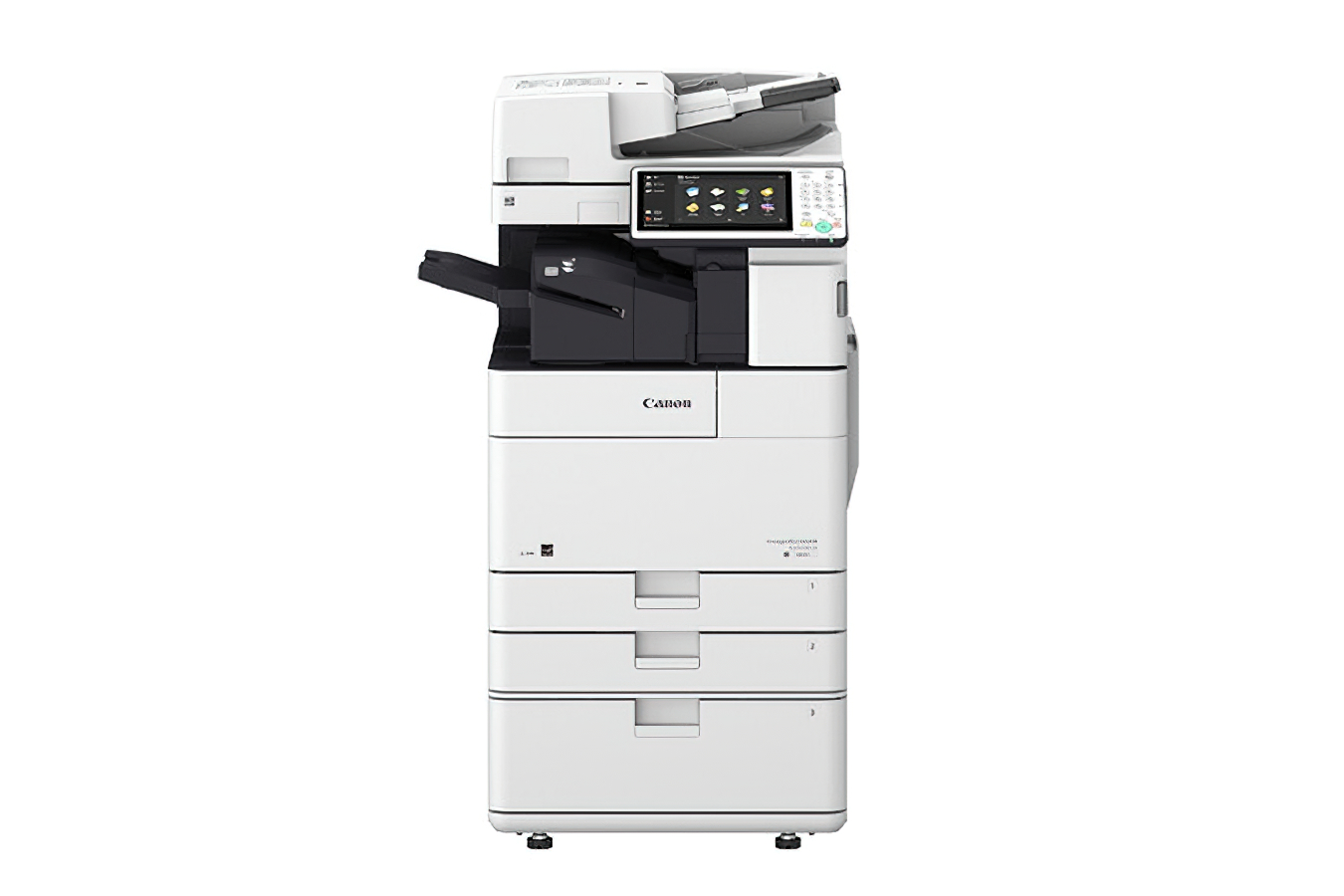

imageRUNNER ADVANCE 4525i

Built for quality, reliability and sustainability, the imageRUNNER ADVANCE 4525i provides busy offices with a multifunction printer designed to improve workflow and perform seamlessly in a variety of environments. This compact, all-in-one printer offers an intuitive user experience, making it an outstanding choice for small to medium sized businesses and departments within large organizations. Ideal for cost-conscious environments, such as schools, government entities and hospitals, users can benefit from the many features of the imageRUNNER ADVANCE 4525i model.

The imageRUNNER ADVANCE 4525i offers printing speeds of 25 ppm in black and white and the ability to scan documents in both B&W and color. The imageRUNNER ADVANCE 4525i has several optional features available, including staple-free stapling, traditional stapling and hole-punching. This high-performing, efficient printer is built upon the intelligent imageRUNNER ADVANCE platform, designed to meet a range of business needs with an easy-to-operate user interface.

Features

Security

With several standard and optional document security features, the imageRUNNER ADVANCE 4525i printer from Canon helps limit access to sensitive information. This model comes standard with Universal Login Manager (ULM) to control access and monitor activity with user authentication. The HDD Encryption function ? updated to obtain FIPS 140-2 validation ? allows the device to automatically encrypt data stored on the main unit?s HDD to limit unauthorized access to internal data. Information can remain private and secure with controlled access using IPsec, port filtering capabilities and SSL technology when needed.

Device and Fleet Management

Device management tools from Canon provide a centralized point of control across multiple units, with the ability to turn off devices remotely, capture meter readings, check status and consumables, and manage address books and drivers. The imageRUNNER ADVANCE line of multifunction printers were designed for easy installation and support the ability to synchronize user settings across multiple compatible units. With standard Genuine Adobe PostScript and PCL, the imageRUNNER ADVANCE 4525i can seamlessly integrate with enterprise applications and legacy systems.

Quality and Reliability

Designed to keep workplaces moving, the imageRUNNER ADVANCE 4525i can maximize device uptime with high-yield consumables to help limit the number of replacements needed. This model provides high-quality output with outstanding imaging technology, producing rich black and white output with every print at up to 1200-dpi print resolution. The imageRUNNER ADVANCE 4525i printer is designed to save space with a compact design, and save time with an intuitive user experience, including status notifications for supplies, built-in maintenance videos, and the ability to replace toner on the fly.

Sustainability

Designed to achieve low energy consumption, the imageRUNNER ADVANCE 4525i includes efficient fixing technologies and toner that requires little heat for fusing. The imageRUNNER ADVANCE 4525i can help minimize waste with features like Secure Print and Forced Hold, allowing users to hold print jobs, preview them and change print settings from the device user interface. Canon?s imageRUNNER ADVANCE 4525i all-in-one printer is compact and efficient, loaded with sustainable features, ENERGY STAR? certified and rated EPEAT? Gold.*

MAIN UNIT
TYPE	Monochrome Laser Multifunctional
CORE FUNCTIONS	Standard: Print, Copy, Scan, Send, Store Optional: Fax
PROCESSOR	Canon Dual Custom Processor (Shared)
CONTROL PANEL	10.1" TFT LCD WSVGA Color Touch-panel
MEMORY	3.0 GB RAM
HARD DISK DRIVE	Standard: 250 GB Maximum: 1 TB
MIRRORING HARD DISK DRIVE	Optional (250 GB, 1 TB) Method: Raid1
PRINT RESOLUTION	1200 dpi x 1200 dpi
INTERFACE CONNECTION	Network Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Others Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) Optional: Serial Interface, Copy Control Interface
PAPER CAPACITY (LTR, 20LB BOND)	Standard: 1,180 Sheets Maximum: 6,330 Sheets
PAPER SOURCES (LTR, 20LB BOND)	Standard: Two 550-sheet Paper Cassettes, 80-sheet Stack Bypass Optional: Two 550-sheet Paper Cassettes (Cassette Feeding Unit-AN1), 2,450-sheet Paper Deck (High Capacity Cassette Feeding Unit-B1), 2,700-sheet Paper Deck (Paper Deck Unit-F1)
PAPER OUTPUT CAPACITY (LTR, 20LB BOND)	Standard: 250 Sheets Maximum: 3,350 Sheets (with External Finishers)
FINISHING CAPABILITIES	Standard: Collate, Group With Inner Finisher: Collate, Group, Offset, Staple, Hole Punch,¹ Staple-Free Staple, Staple On Demand With External Finisher: Collate, Group, Offset, Staple, Booklet,² Staple-Free Staple, Staple On Demand, Hole Punch³
SUPPORTED MEDIA TYPES	Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Pre-punched Stack Bypass: Thin, Plain, Recycled, Color, Heavy, Pre-punched, Bond, Transparency, Label, Envelope
SUPPORTED MEDIA SIZES	Paper Cassette (1): Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 15-3/8") Paper Cassette (2): 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 15-3/8") Stack Bypass: 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 17")
SUPPORTED MEDIA WEIGHTS	Paper Drawers: Paper Cassettes: 16 lb. Bond to 34 lb. Bond (60 to 128 g/m²) Stack Bypass: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m²) Duplexing: 16 lb. Bond to 28 lb. Cover (60 to 105 g/m²)
WARM-UP TIME	From Power On: 24 Seconds or Less From Deep Sleep Mode: 10 Seconds or Less Quick Startup Mode: 4 Seconds⁴
DIMENSIONS (W X D X H)	23-1/8" x 29-1/8" x 47" (587 mm x 740 mm x 1,193 mm)⁵
INSTALLATION SPACE (WXD)	Basic [With ADF (Stack Bypass and Cassette Drawers Open)]: 35" x 46-1/2" (889 mm x 1,182 mm) Fully Configured [With ADF+Paper Deck Unit-F1+ Booklet Finisher-Y1 (Cassette Drawers Open)]: 71-3/8" x 50-3/8" (1,811 mm x 1,280 mm)
WEIGHT	Approx. 240.7 lb. (109.2 kg)⁶

PRINT SPECIFICATIONS
PRINT SPEED	Up to 25 ppm (Letter); Up to 17 ppm (Letter-R); Up to 13 ppm (Legal); Up to 15 ppm (11" x 17")
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL?6, Adobe? PS? 3
DIRECT PRINT	Available from USB, Advanced Box, Remote UI, and Web Access (Opt.)⁷
SUPPORTED FILE TYPES FOR DIRECT PRINT	PDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE AND CLOUD	A range of software and MEAP-based solutions are available to provide printing from mobile devices or Internet-connected devices and cloud-based services depending on your requirements.
FONTS	PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andal? Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),⁸ Barcode Fonts⁹ PS fonts: 136 Roman
OPERATING SYSTEM¹⁰	UFRII: Windows Vista?/Server 2008/Windows? 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.6.8 or later) PCL: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10 PS: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10, MAC OS X (10.6.8 or later) PPD: MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows 8/Windows 8.1/Windows 10
PRINT FEATURES	Suspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Forced Hold Printing, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Toner Reduction, Poster Printing

COPY SPECIFICATIONS
COPY SPEED	Up to 25 ppm (Letter); Up to 17 ppm (Letter-R); Up to 13 ppm (Legal); Up to 15 ppm (11" x 17")
FIRST-COPY-OUT-TIME	As fast as 5.2 seconds
COPY RESOLUTION	Reading: Up to 600 dpi x 600 dpi Printing: 1200 dpi x 1200 dpi
MULTIPLE COPIES	Up to 999 copies
COPY EXPOSURE	Automatic or Manual (9 Levels)
MAGNIFICATION	25%-400% (1% Increments)
PRESET REDUCTIONS	25%, 50%, 64%, 73%, 78%
PRESET ENLARGEMENTS	121%, 129%, 200%, 400%
BASIC COPY FEATURES	Preset Reduction/Enlargement Ratios by Area, Paper Setting, Previous Settings, Favorite Settings, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel
SPECIAL COPY FEATURES	Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Detect Feeder Multi Sheet Feed, Free Size Original

SCAN SPECIFICATIONS
TYPE	Optional Single Pass Duplexing Automatic Document Feeder or Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	Single Pass DADF-A1: 150 Sheets (20 lb. Bond) DADF-AV1: 100 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES	11" x 17", Legal, Letter, Letter-R, Statement, Statement-R
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHT	Single Pass DADF-A1 BW Original: 13 lb. Bond to 58 lb. Cover (50 to 157 g/m²) CL Original: 17 lb. Bond to 58 lb. Cover (64 to 157 g/m²) DADF-AV1 BW Original: 13 lb. Bond to 34 lb. Bond (50 to 128 g/m²) CL Original: 17 lb. Bond to 34 lb. Bond (64 to 128 g/m²)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2 kg)]
PULL SCAN	Color Network ScanGear2 for both Twain and WIA Supported OS: Windows Vista/7/8/8.1/10 Windows Server 2008/Server 2008 R2/Server 2012/Server 2012 R2
SCAN RESOLUTION	600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100dpi
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES	A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.
SCAN SPEED (LETTER)	Single Pass DADF-A1 Single-sided Scanning (BW): 80 ipm (300 dpi)/80 ipm (600 dpi) Single-sided Scanning (Color): 80 ipm (300 dpi)/60 ipm (600 dpi) Double-sided Scanning (BW): 160 ipm (300 dpi)/150 ipm (600 dpi) Double-sided Scanning (Color): 160 ipm (300 dpi)/80 ipm (600 dpi) DADF-AV1 Single-sided Scanning (BW): 70 ipm (300 dpi)/51 ipm (600 dpi) Single-sided Scanning (Color): 70 ipm (300 dpi)/51 ipm (600 dpi) Double-sided Scanning (BW): 35 ipm (300 dpi)/25.5 ipm (600 dpi) Double-sided Scanning (Color): 35 ipm (300 dpi)/25.5 ipm (600 dpi)

SEND SPECIFICATIONS
DESTINATION	E-mail/Internet Fax (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional)
COLOR MODE	Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White), Full color, Grayscale, and Black-and-White
ADDRESS BOOK	Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White), Full color, Grayscale, and Black-and-White
SEND RESOLUTION	600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 150 x 150 dpi, 100 x 100dpi
COMMUICATION PROTOCOL	File: FTP, SMB v3.0, WebDAV E-mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full)
FILE FORMAT	Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b), XPS (Compact, Searchable), Office Open XML (PowerPoint?, Word) Optional: PDF (Trace & Smooth, Encrypted), PDF/XPS (Digital Signature)
UNIVERSAL SEND FEATURES	Original Type Selection,Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Originals, Detect Feeder Multi Sheet Feed

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES	4
MODEM SPEED	Super G3: 33.6 Kbps G3: 14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION	400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
SENDING / RECORDING SIZE	Statement-R to 11" x 17"
FAX MEMORY	Up to 30,000 pages
SPEED DIALS	Max. 200
GROUP DIALS / DESTINATIONS	Max. 199 dials
SEQUENTIAL BROADCAST	Max. 256 addresses
MEMORY BACKUP	Yes
FAX FEATURES	Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density for Scanning, Sharpness, Copy Ratio, Erase Frame, Job Build, Specifying the Sender's Name (when sending fax), Sender's Name (TTI), Select Line, Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed

STORE SPECIFICATIONS
MAIL BOX (NUMBER SUPPORTED)	100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored
ADVANCED BOX	Communication Protocol: SMB or WebDAV Supported Client PC: Windows (Windows Vista/7/8/8.1/10) Concurrent Connections (Max.) SMB: 64 WebDAV: 3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACE	Approx. 16 GB (Standard HDD) Approx. 480 GB (1 TB HDD)
ADVANCED BOX FEATURES	Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
MEMORY MEDIA	Standard: USB

SECURITY SPECIFICATIONS
AUTHENTICATION	Standard: Universal Login Manager, User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in Optional: uniFLOW
DATA	Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated) Optional: Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORK	Standard: IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
DOCUMENT	Standard: Secure Print, Forced Hold Printing, Adobe LiveCycle? Rights Management ES2.5 Integration Optional: Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan Locking

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT	Temperature: 50 to 86?F Humidity: 20 to 80% RH (no condensation)
POWER REQUIREMENTS	120-127 V AC, 60 Hz, 7A
PLUG (MAIN UNIT)	NEMA 5-15P
POWER CONSUMPTION	Maximum Approx. 1.5 kWh Standby: Approx. 38 W Sleep Mode: Approx. 0.9 W¹¹ Typical Electricity Consumption (TEC) Rating: 1.0 kWh
STANDARDS	ENERGY STAR? Certified Rated EPEAT? Gold¹² RoHS Compliant

CONSUMABLES
TONER	GPR-57 Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE)	Black: 42, 100 Copies

FOOTNOTES
1 Requires the optional Inner 2/3 Hole Puncher-C1. 2 Booklet Finisher-Y1 only. 3 Requires the optional 2/3 Hole Puncher Unit-A1. 4 Time from device power-on to when copy jobs can be programmed. 5 Includes Main Unit, Single Pass DADF-A1, and Cassette Feeding Unit-AN1. 6 Includes Main Unit, Single Pass DADF-A1, Cassette Feeding Unit-AN1, and consumables. 7 PDF print from Web sites is supported. 8 Requires the optional PCL International Font Set-A1. 9 Requires the optional Barcode Printer Kit-D1. 10 Other operating systems and environments including AS/400, UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative. 11 0.9 W Sleep mode is not available in all circumstances due to certain settings. 12 For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
